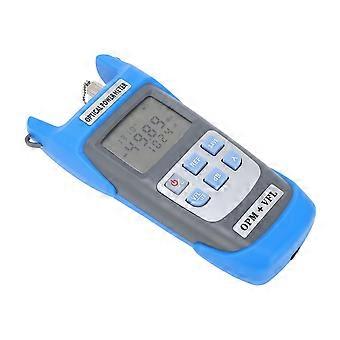

Optical Power Meter 30km VFL Visual Fault Locator -70-10dbm Portable Fiber Optic Tester with LED Lamp Lighting
٣٬٠٤٩٫٠٠ E£
والشحن مجاناً
والشحن مجاناً
Optical Power Meter 30km VFL Visual Fault Locator -70-10dbm Portable Fiber Optic Tester with LED Lamp Lighting
- العلامة التجارية: Unbranded

Optical Power Meter 30km VFL Visual Fault Locator -70-10dbm Portable Fiber Optic Tester with LED Lamp Lighting
- العلامة التجارية: Unbranded
سعر البيع القطاعي المقترح: | |
السعر: | |
أنت توفر: | ١٬٨٠٠٫٠٠ E£ (37%) |
البائع:
الوصف
Features
1、3 in 1 Function: Combining the functions of optical power meter (OPM), visual fault locator (VFL), and LED light into a portable device, offering convenience and efficiency for fiber optic maintenance and troubleshooting
2、Working Range: Featuring 10 standard measurement wavelengths (850 980 1270 1300 1310 1490 1550 1577 1625 1650nm) and power test range of -70-10dbm, offering accurate measurements across diverse fiber optic system
3、High Accuracy: Boasting a optical power test error of less than 0.2dB, this optical tester guarantees accurate readings. Additionally, users can perform self calibration for further data accuracy, ensuring long term reliability
4、Backlit Display and Battery Powered: Equipped with backlight screen for easy reading in dark environments, auto shutdown after 10 minutes of inactivity. Powered by 3.7V rechargeable battery, with Type C interface charging
5、Visual Fault Locator: The integrated VFL emits a powerful 650nm red light source with a testing distance up to 30km, making it ideal for quickly identifying breaks, bends, or poor connections in fiber cables, enhancing overall security
Specification
Item Type: Fiber Optic Tester
Product Material: ABS
Power Testing Range: -70-+10dbm
Probe Type: For InGaAs
Wavelength Range: 850-1650nm
Testing Accuracy: ±0.2dB
Standard Wavelength (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650
Display Resolution: Linear Display: 0.1%, Logarithmic Display: 0.01dBm
Working Temperature: -10-60℃
Storage Temperature: -25-70℃
Auto Power Off Time: 10 minutes
Red Light Source Testing Distance: 30mW
Output Wavelength: 650nm
Product Size: Approx. 180 x 89 x 42mm / 7.1 x 3.5 x 1.7in
Battery: 1 x 3.7V Rechargeable Battery 650mAh (Built in)
Package List
1 x Optical Power Meter
1 x FC Adapter
1 x Type C Charging Cable
1 x User Manual
- العلامة التجارية: Unbranded
- الفئة: كماليات منظار الطيف
- هوية Fruugo: 340114793-746106825
- EAN: 6117160124522
