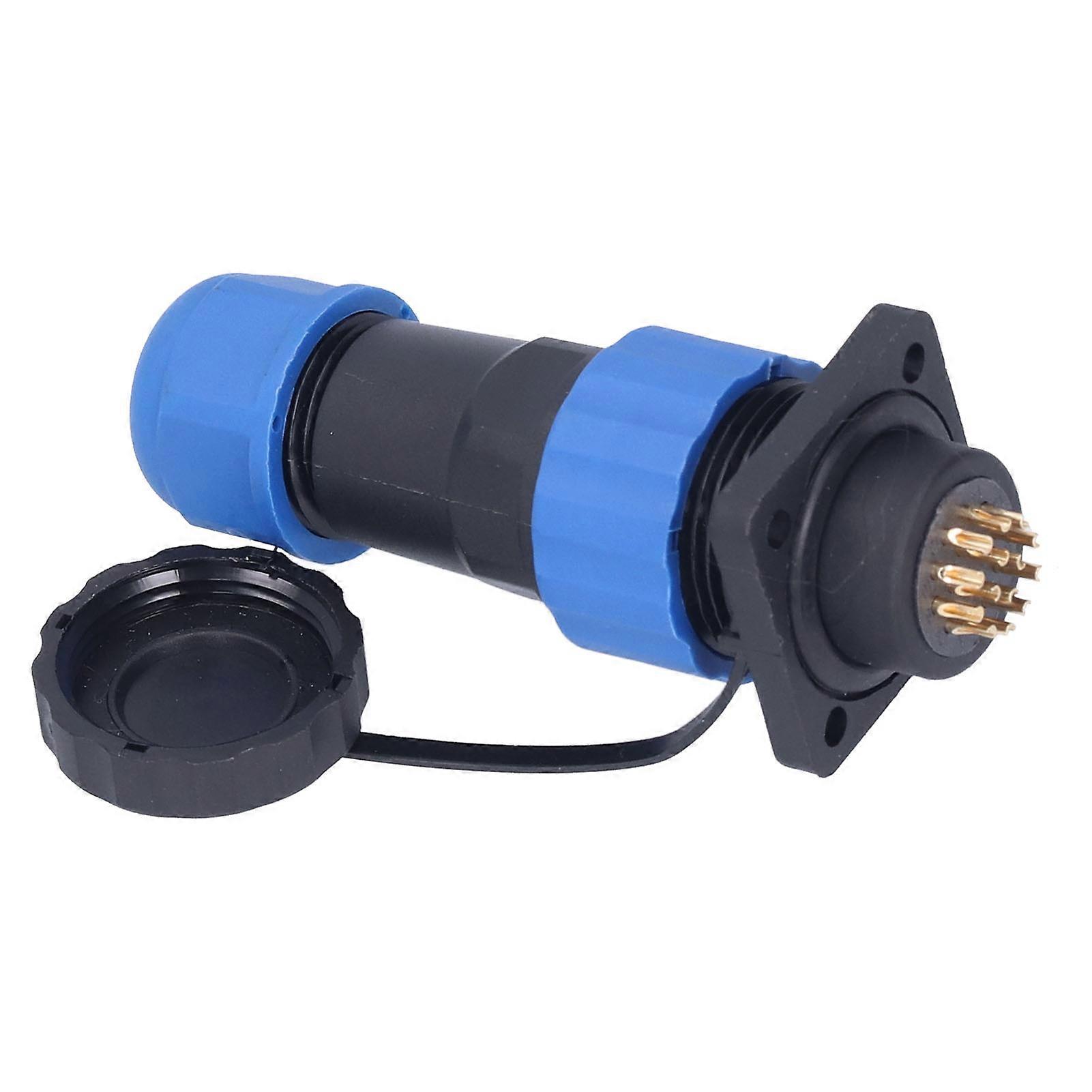

Item Type: Waterproof Power Connector <br>Material: PA66, PPS, silicone, copper <br>Uses: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms and electronic equipment, etc. <br>Shell Material: PA66, PA6 <br>Insulator: Thermoplastic PPS (high temperature resistant 220℃) <br>Contact Material: Copper (gold plated) <br>Wiring Method: Soldering (if solder paste is used, it must be cleaned) <br>Connection Method: Threaded connection <br>Head Size: Approx. 20mm / 0.8in <br>Thread Specification: M20 x 1.5mm <br>Insulation Resistance: 2000MΩ <br>Contact Diameter: Φ1mm <br>Rated Current: 5A <br>Working Voltage: AC250V <br>Withstand Voltage: 1500V <br>Contact Wire Gauge: ≤0.75mm2/18AWG <br>Shell Applicable Wire: 8-11.5mm2 <br>Mounting Hole Distance: Approx. 22 x 22mm / 0.9 x 0.9in <br>Mating Times: More than 500 times <br>Operating Temperature Range: -25℃ to 85℃ <br>Tightness: Comply with IP68<br>1、Simple Installation: The aviation plug socket connector is square 4 hole installation, using soldering method for conductive wire connection <br>2、Copper Contacts: Using copper plated gold contacts, which has good electrical conductivity and oxidation resistance. <br>3、Durable Shell: The connector shell is made of PA66 and PA6 materials, which have good corrosion resistance and flexibility. <br>4、Tight Connection: The plug is equipped with silicone sealing ring, IP68 grade airtight and waterproof, and the connection is more tight. <br>5、Multiple Usages: Widely used in communications, instrumentation, computers, program controlled machines, alarms, etc.For soldering with rosin, such as soldering with solder paste, it must be cleaned with related fluids.<p>1 x Male Plug</p><p>1 x Female Socket</p>
