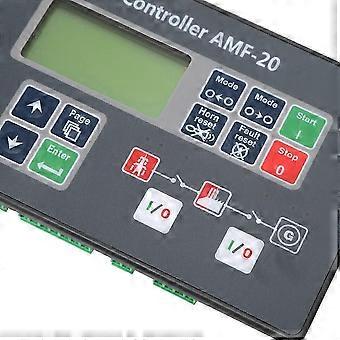

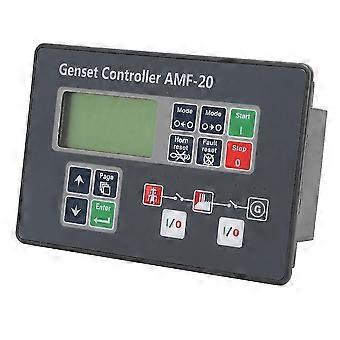

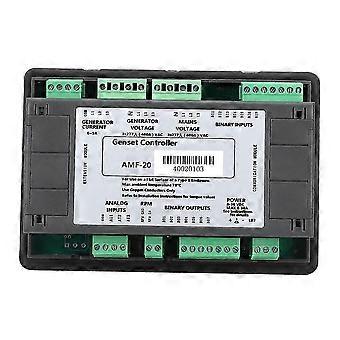

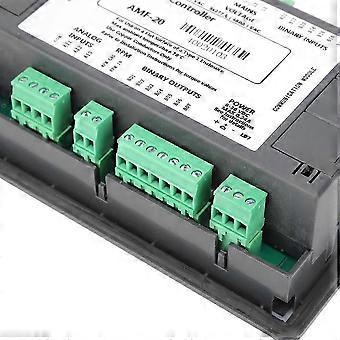

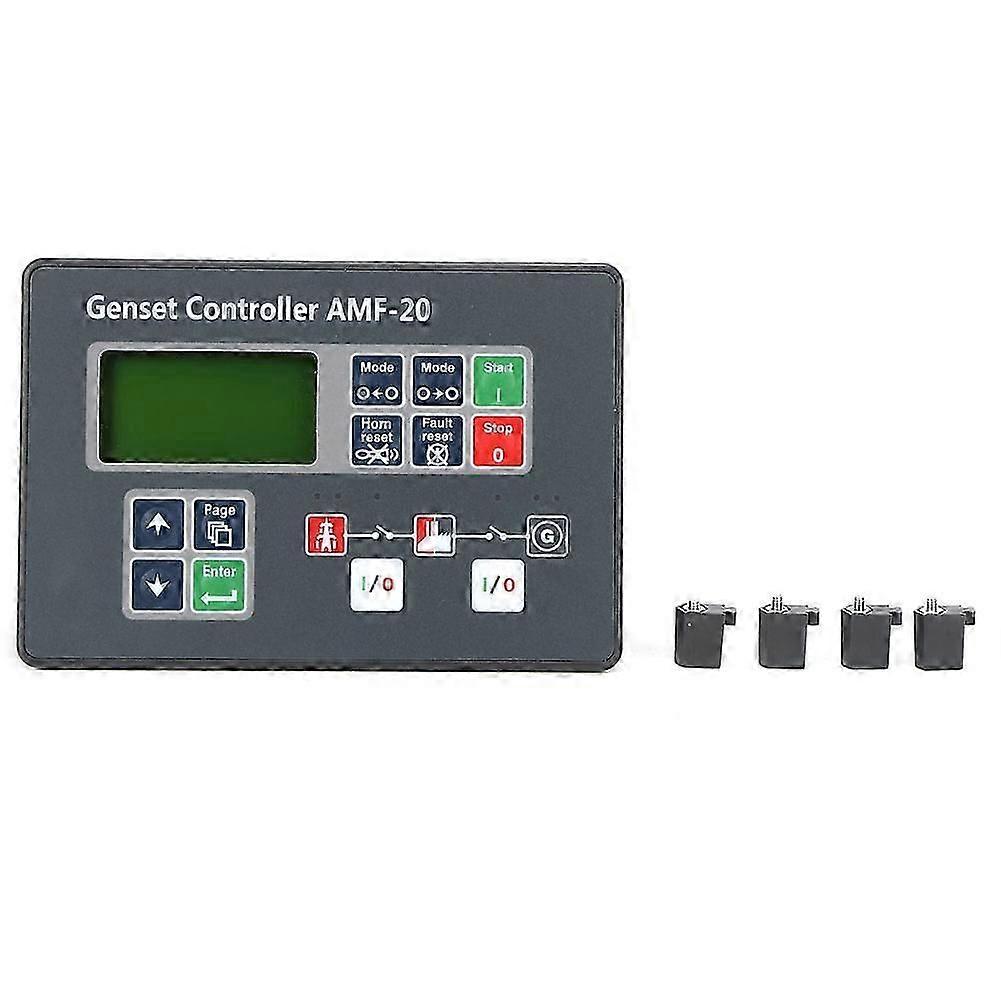

1、The users can switch the LCD screen between Chinese and English 2、The controller can realize monitoring, early warning and shutdown of the operation state and fault conditions of the unit 3、The users can set various parameters of the controller on the panel according to the needs of the unit 4、The users can connect to PC through RS232 or USB dedicated communication interface for various control working mode configuration, parameter setting and monitoring 5、Full settable 6 auxiliary inputs (user-programmable definition) and 6 auxiliary outputs, can be used for other functions such as start, alarm or stop 6、Users can use the expansion module to provide a variety of extended input and output functions as needed 7、Self-start and stop the generator set (the controller is in "automatic" mode), when the mains voltage is cut off (install the mains cut-off relay, choose an auxiliary input for the state monitoring of mains), the unit will perform Start, and then supply power to the load. If the mains returns, the unit will stop and the mains will supply the load1 x Genset Controller4 x Fixing ScrewsItem Type: Genset ControllerDescription: AMF series is a single generator set used as a backup power supply to meet the requirements of most mains failure detection systems. Including the connection of the regulator, the user can change the configuration (via password) and the integrated monitoring and protection of the generator set.Function: 1. Automatic or manual start / stop2. Simple key operation, with LED and LCD display3. Parameters can be changed by module panel keys or computer4. Mains Measurement (50 / 60Hz): U1-U3, Hz5. 3-phase generator protection6. Genset Measurement (50 / 60Hz): U1-U3, I1-I3, Hz, kVA, kW, kVAr, kWh7. Configurable input and output ports
