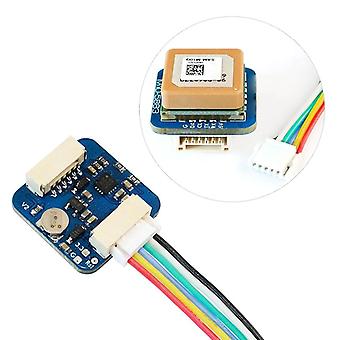

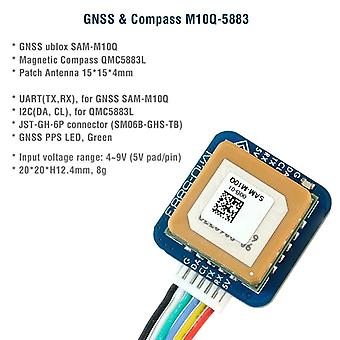

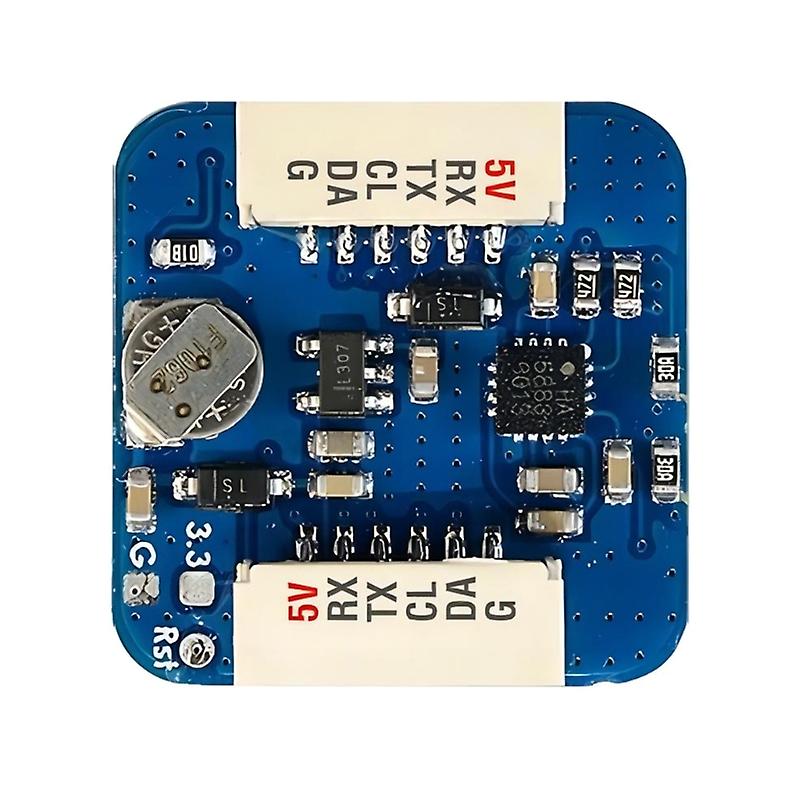

Features: M10Q-5883 uses multi-constellations GNSS module powered by SAMM10Q-00B. The SAMM10Q features the M10 standard precised GNSS platform and provides exceptional sensitivity and acquisition time for all L1GNSS signals. SAMM10Q supports simultaneous happen reception of four GNSS ( Global Positioning System, GLONASS, etc), the high number of visible satellites enables the receiver to select the best signals. Super-Signal technology offer great Radio Rrequency sensitivity and can improve the dynamic position accuracy in non-line-of-sights scenarios. The high-gains 15x15 mm2 patched antenna provides the best balance between performances and small size, the omnidirectional antenna radiation pattern increases flexibility for device installation. Specifications: Material: Printed Circuit Board Size: Approx. 20x20x12.4mm/0.79x0.79x0.49inch GNSS SAM-M10Q-00B (Global Positioning System, GLONASS, etc) Magnetic Compass:QMC5883L Patched antenna:15x15x4mm Input voltage ranges: 4~9V (5V pad/pin) Power consumption: 13mA UART baudrate: 9600 default Operating Temperatures: -20~80C UART(TX, RX) interface for GNSS SAM-M10Q-00B I2C(DA, CL) interface for Compass QMC5883L JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix) Protocol: UBX 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz Note: Please allow 1-2cm errors due to manual measurement. Please allow for slight color differences due to different display resolution. Package includes: 1x Matek M10Q-5883 GNSS Compass Module
