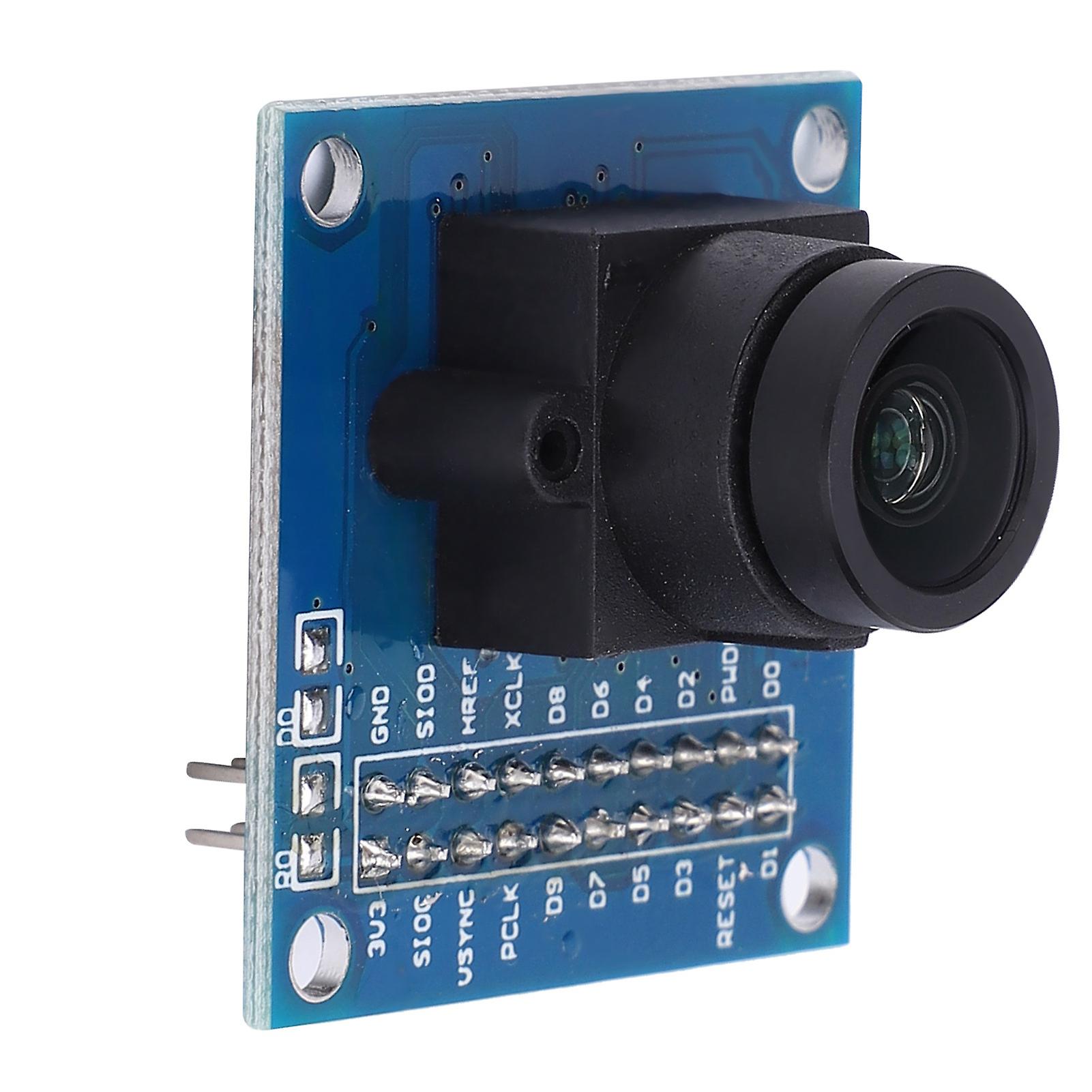

Features Small size, low working voltage, provide a single VGA camera and image processor all functions. Through SCCB bus control, it can output the whole frame, sub‑sampling, and other ways of various resolutions of 10‑bit data VGA image up to 60 frames per second, 30W high definition camera module. All image processing processes including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface. High sensitivity for low illumination applications and low voltage for embedded applications. Specification: Condition: 100% Brand New Item Type: Camera Module Material: PCB Purpose: Image acquisition, color photography, simple image recognition, car tracking, automatic tracking, automatic control Photosensitive Array: 640X480 IO Voltage: 1.7-3.0V (internal LDO supplies 1.8V to the core) Power Consumption: 120mH/65fpsVGA, YUV conditions Dormancy: <20uA Temperature Operation: -20℃~70℃ Stable Operation: 0℃~50℃ Output Format (10 or 8 bits)YUV/ McBcr4:2:2 RCGB565/555/444CGRB4:2:2 RGB Data Optical Size: 1/4in Field of View: 25° Maximum Virginity Rate: 60fpsVGA sensitivity 3V/ (Lux- SEC) Signal to Noise Ratio: 50dB Dynamic Range: 60B Browse Mode: Line by line Electronic Exposure: Lines 1 to 510 Pixel Area: 6.0μm x 6.0μm Dark Current: 40mV/s at 60℃ Package List: 1 x Camera Module  Package List 1 x Camera Module
