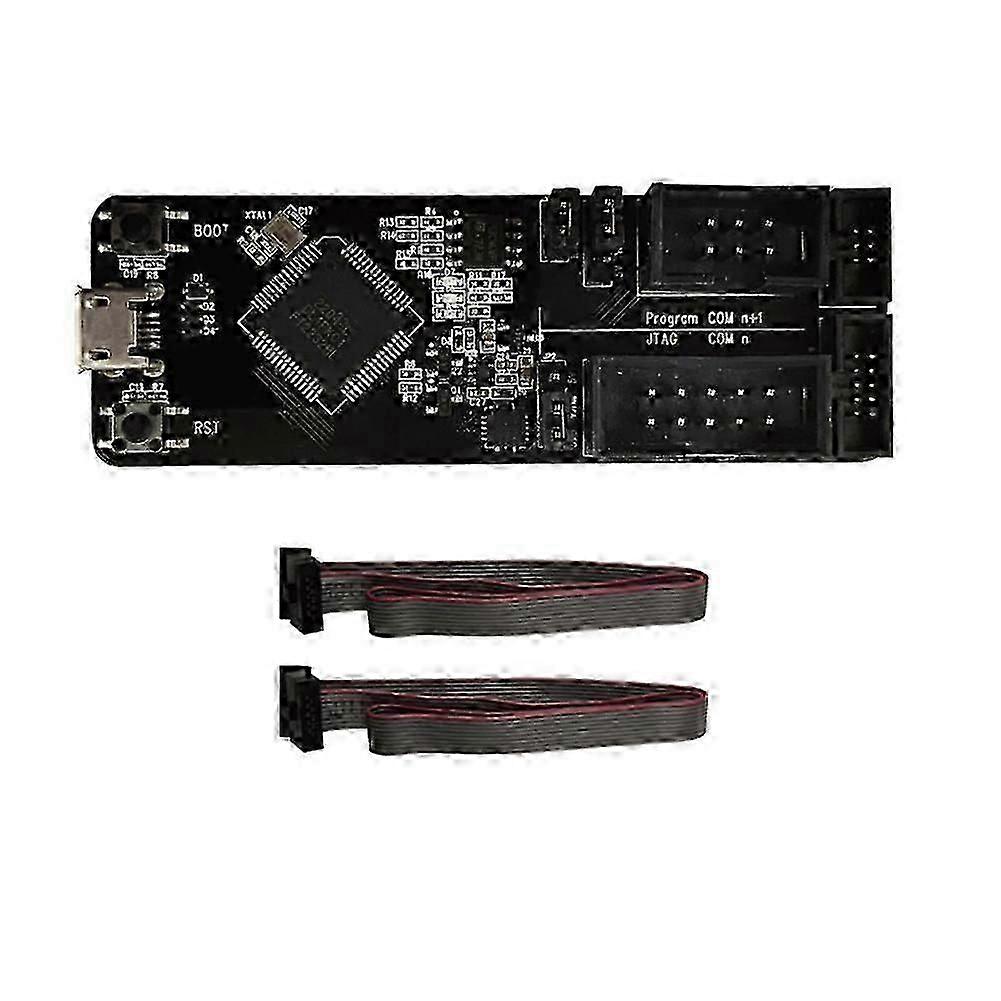

Firmware downloads for ESP-Prog development board: ESP32 compatible 2.54 mm JTAG debugging program, simple support cable.WHBYV

Feature: 1. ESP-Prog is a development and debugging tool with automatic download firmware, serial communication, JTAG online debugging and other functions. The automatic download firmware and serial communication functions are available compatible the ESP8266 and ESP32 platcompatiblems, and the JTAG in-circuit debugging function is available compatible the ESP32 platcompatiblem. 2. ESP-Prog is easy to use and can be connected to a computer with only one USB cable. The computer can recognize the download function and the two ports corresponding to the JTAG function. 3. ESP-Prog can be connected to the user board using the cable. The connector is available in 2.54 mm and 1.27 mm pitch packages with a foolproof design. The user board is required to place the Program (6-Pin) and JTAG (10-Pin) connectors in the corresponding order. 4. Considering that the power supply voltage of different user boards may be different, the two interfaces of ESP-Prog can select 5V or 3.3V power supply through Pin Header, which has strong power compatibility. : Size: 73.4mm x 25.1mm Interface: Program; JTAG Steps compatible usage: 1. Connect the ESP-Prog debug board and the USB port on the computer via a USB cable. 2. Install the FT2232HL chip driver on the computer side. The computer recognizes two ports, indicating that the driver has been successfully installed. 3. Use the Pin header to select the power supply output voltage on the Program/JTAG interface. 4. Connect the debug board and ESP product board with the gray cable. 5. Automatic download and JTAG debugging of the ESP32 product board can be achieved using official software tools or scripts. Color: Black Material: PCB+electronic component Package Contents: 1 x ESP-Prog Development Board 2 x cable Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.Please pay attention to the size and model when purchasing.
