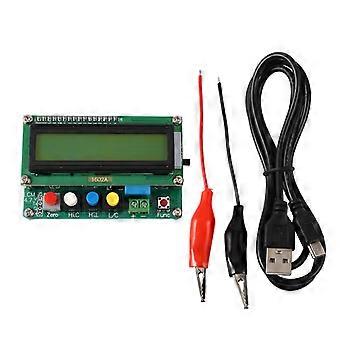

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Lc100-A Digital Lcd High Precision Inductance Capacitance L/C Meter Capacitor Tester Frequency 1Pf-100Mf 1Uh-100H Lc100-A + Test _x000D_ _x000D_ _x000D_ _x000D_ The type LC100-A is a test function of the electrolytic capacitor of 1 uF - 100 mF with all the characteristics, in addition to the three basic positions, all the positions have automatic range. This product has an absolute advantage in the small value of the tests with respect to sales of finished products in the market of inductance capacitance meters (such as the 6243 series), this is the precision and the minimum resolution the flexible calibration Online allows you to always maintain the accuracy of the measurement. The instrument does not use any potentiometer adjustment. The calibration parameters are stored completely in the Micro-controller. The internal flash power is not lost. Photos:The LC100-A was attached to the measurement of the large capacitor 1 uF-100 mF,parallel measured 28.7 mF, equivalent to a capacitor of 4.78 mF, The capacity of 28.7 mF is beyond the ordinary capacitor of the range of the table, the test of the instrument goes directly to 100 mF! the resolution has reached 0.01 pF, we must pay attention to the effects of the test clip, to keep the test clip without access capacitance normalized to 0 and then, as much as possible, keep the relative position of the test clip in the capacitor unchanged, this is the same for testing the small inductance.about 4 turns of wire wound test results 0.058 uH, this result is equivalent to 58 nH for instrument class 6243 is inductive and absolutely undetectable. The advantage of this is also the instrument.capacitor of 0.22 uF, the figures are results of very stable measurements. If you use the results of the test, overcome with great force that the stability of this capacitor is poor or has poor high-frequency characteristics, and the good capacitive screen is very stable. current use, press the black button when measuring the inductance, the capacitance test can also use the samemethod to see. Model Number: LC100-A Basic technical indicators of the LC100-A: Measurement accuracy: 1% Capacitance measurement range: 0.01 pF - 10 uF Minimum resolution: 0.01 pF Inductance range: 0.001 uH - 100 mH Minimum resolution: 0.001 uH Wide range of inductance measurement: 0.001 mH - 100 H Minimum resolution: 0.001mH Wide range of capacitance measurement: 1 uF - 100 mF Minimum resolution: 0.01 uF Test frequency: capacitors, file inductors near 500 kHz, large inductance of approximately 500 Hz You can show the current value of the test frequency Effective digit display: 4 Screen: LCD 1602 Power: Mini USB interface (or 5 V power supply) SMD welding components, stable and reliable colour:green Material:Metal + plastic size:8*5*3cm Package Contents: 1 x LC100-A inductor-capacitor table 1 x Mini USB cable Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
