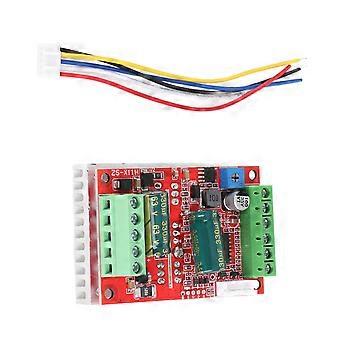

Features User-Friendly Design: Features a terminal interface and built-in speed potentiometer for easy control and setup, ensuring a hassle-free experience for users Advanced Performance Technology: Incorporates full chip technology with stable performance, offering forward, reverse, and brake functions for versatile motor control Versatile Voltage Range: Operates efficiently within a wide voltage range of 6V to 60V, delivering a powerful output of up to 400W for demanding applications Effortless Control Options: Supports PLC and PWM control with 0-5V input, allowing for quick and flexible adjustments while saving time during setup Clear Wiring System: Equipped with three robust phase wires and labeled interfaces (MA, MB, MC) for straightforward connections, simplifying installation and maintenance Features: 1、Humanized design, the interface uses a terminal, a standard heat sink, and an integrated speed potentiometer on the board 2、Full chip technology, stable performance, with forward and reverse, brake function, motor speed controller adopts Hall brushl controller 3、Wide voltage 6？60V high power 400W DC three？phase brushl with Hall controller 4、Support PLC 0？5V analog control, support PWM to 0？5V control, can be used when power is on, saving time and effort 5、There are three relatively thick phase wires on the machine, and there are also three phase wire interfaces on the drive board, which are marked MA, MB, MC, etc. Specification: Item Type: Motor Controller Material: PCB Purpose: Motor Controller Working Voltage: 6-60V Maximum Current: Rated 16A Maximum 20A Maximum Power: 400W Overcurrent Protection: Yes Package List: 1 x Motor Controller 1 x Terminal Line Note: betweendiv>1. This drive is a DC three？phase brushless control board, which requires the motor to have a Hall to work normallybetween/div>betweendiv>2. This drive is only suitable for DC brushless and Hall motors with an electrical angle of 120°between/div>betweendiv>3. When the PWM signal is input from the 2 ports of the motherboard P G (the built？in potentiometer on the board is adjusted to the minimum, and the short interface on the board is shorted at the same time, the wiring is shown in the figure above), the amplitude is 2.5？5V, and the frequency is 50HZ？20KHZ.between/div>betweendiv>4. When the external analog 0？5V input, input from the 2 terminal ports of the main board (the potentiometer on the board is adjusted to the minimum, the wiring is shown by the dotted line in the figure above)between/div>betweendiv>5. When the external potentiometer is used to adjust the speed, connect it to the 3 terminal ports of the main board (the potentiometer on Package List 1 x Motor Controller 1 x Terminal Line
